Ponsse Scorpion Giant
Harvesters
- Extended warranty
- Flexible financing
- Tailored service contracts
Sometimes more really is more – the PONSSE Scorpion Giant is built to handle harvesting tasks that demand the highest levels of power, durability, and resilience. Equipped with the world’s most advanced forest machine technology, proven solutions, and exceptional operator comfort, it helps achieve maximum productivity in even the most challenging environments.
From the centrally positioned cabin, operators benefit from excellent visibility in every direction, ensuring smooth and precise work. A powerful engine and robust hydraulics deliver all the force required for both harvesting and transmission, while the advanced double-circuit hydraulic system guarantees efficient operation with larger trees. Separate hydraulic pumps for the crane and harvester head, combined with a high-speed hydraulic pump drive, ensure a sufficient and consistent oil flow for maximum efficiency.
The Scorpion Giant’s unique stabilization system automatically detects the crane’s direction and presses the rear frame in the working direction, enhancing stability even when working sideways or in motion. Its triple-frame structure, hydraulically leveled central frame, and eight-wheel design ensure balanced weight distribution, low ground pressure, and superior comfort on slopes and uneven terrain. With cutting-edge technology and uncompromising performance, the Scorpion Giant sets the standard for heavy-duty forest machines.
Technical specifications
Here are the key specifications for Scorpion Giant. Want more details? Download the brochure or contact us.
- Minimum weight 23 000 kg
- Operating weight 24 000 kg
- Max length 8 020 mm
- Width 2 690 - 3 085 mm
- Ground clearance 655 mm
- Transportation height 3 720 mm
- Turning angle (C50+) 280 º
- Crane reach (C50+) 8.6 / 10 / 11 mm
- Gross power 210 kW
- Engine torque 1200 (1200 / 1600) rpm
- Tractive force 180 kN
- Harvester heads New H8 / H6 / H7 / H7 HD Euca
- Cranes C50+
Benefits & Features
Here are the key benefits and features of the Scorpion Giant. Want to know more? Download the brochure or get in touch with us.
Active Crane – Smarter, Easier Control
PONSSE Active Crane introduces a new way to control the loader or harvester head, making operations smoother and more efficient. Instead of managing multiple functions individually, the operator simply directs the grapple or harvester head movement. With two intuitive levers, one sets the height from the ground and the other the direction of movement, while the system automatically manages the boom and extension. This reduces operator workload, improves precision, and allows full focus on productive loader work. Available as an option, Active Crane turns complex handling into simple, efficient performance.

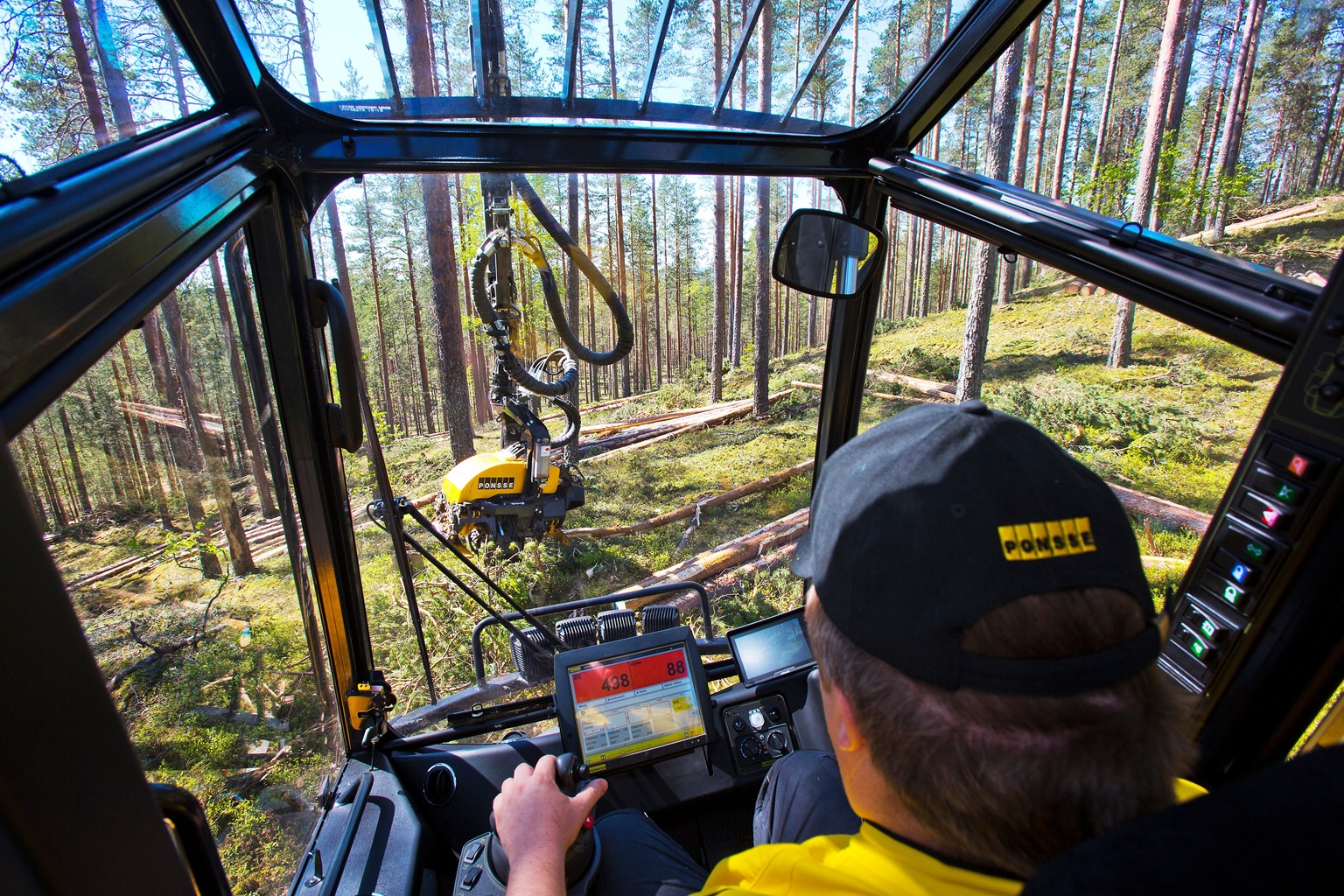

Operator-Centered Cabin with Full Visibility
The design of the Scorpion Giant places the operator at the very centre of the machine, ensuring unmatched comfort and efficiency. With the cabin located in the middle, it is easier to see the machine’s extremities, even in dense thinning sites. Positioned at the centre of the cabin’s turning radius, the operator experiences smooth, stable movement without the sensation of rotation, greatly improving comfort and wellbeing at work.
The unique crane solution provides excellent all-round visibility, including clear side views, enabling efficient tree selection, precise felling, and accurate piling. With this design, operators can achieve maximum harvesting quality while working with confidence in any forest conditions.

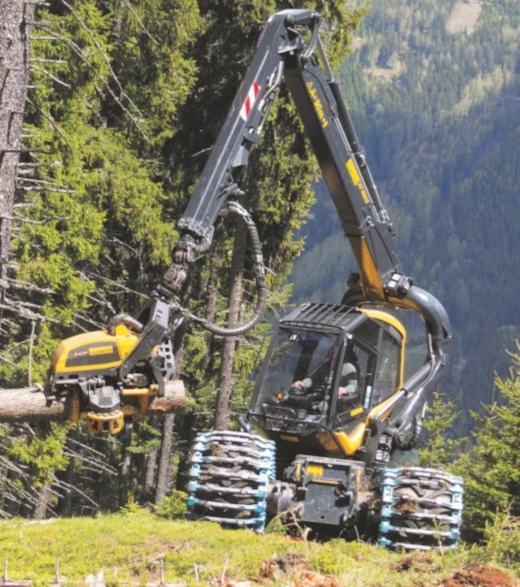

Unrivalled Stability and Balanced Frame Structure
The Scorpion Giant achieves remarkable stability through its eight-wheel design and patented active stabilization system. By detecting the crane’s direction and position, the system automatically presses the rear frame in the working direction, keeping the rear wheels firmly on the ground. This dramatically improves stability when working sideways, even while the machine is in motion.
The innovative three-part frame further enhances balance and operator comfort. The cabin and crane are located in the hydraulically levelled middle frame, while the front and rear frames oscillate with the terrain. Thanks to the low pivot point of lateral leveling, the cabin remains straight and stable, minimizing swaying and keeping the centre of mass perfectly aligned with the machine’s centre line. This design ensures precision, safety, and comfort in all operating conditions, including slopes and uneven ground.
