Volvo EC500
Large crawler excavators
- Extended warranty
- Flexible financing
- Tailored service contracts

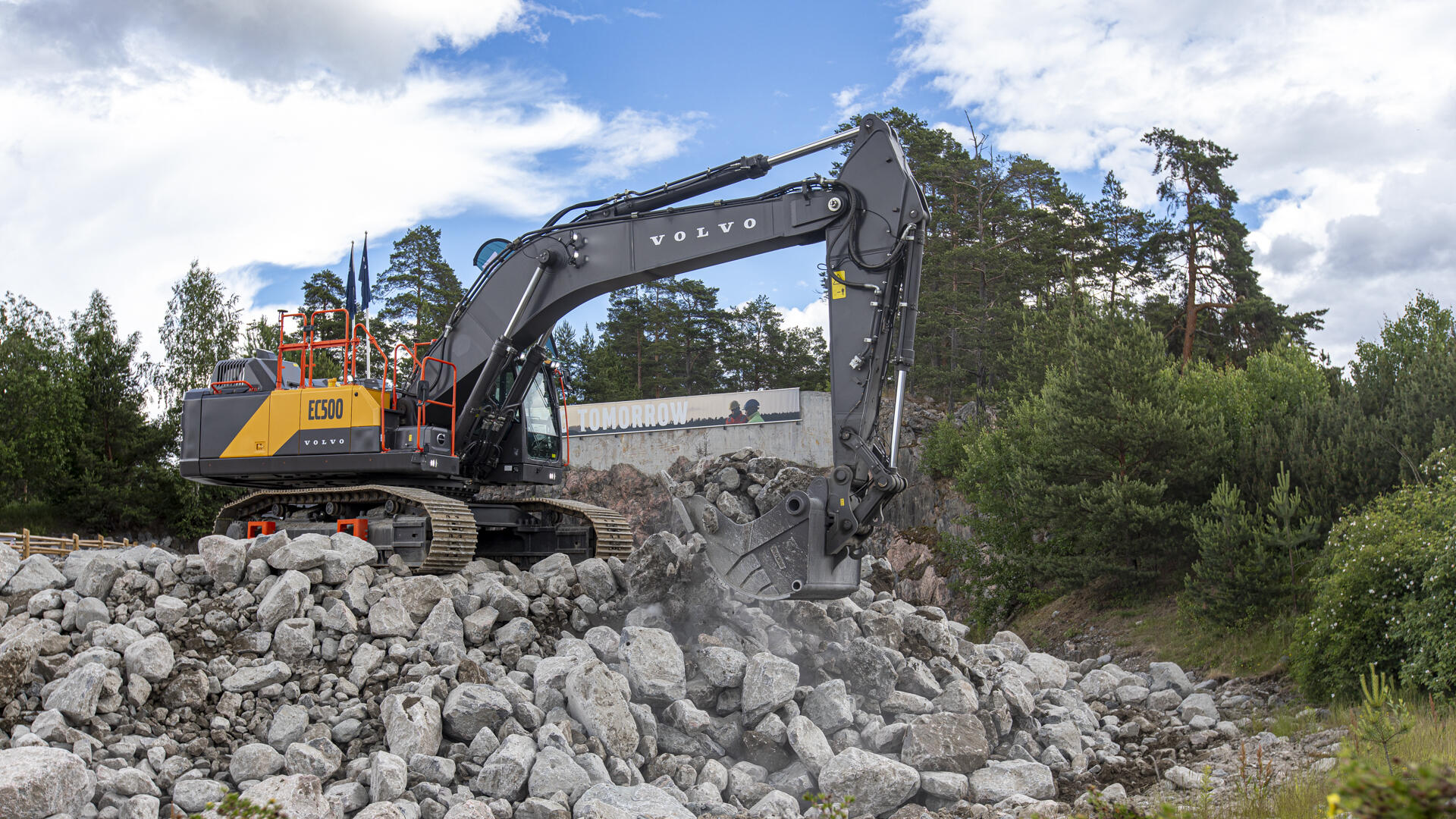

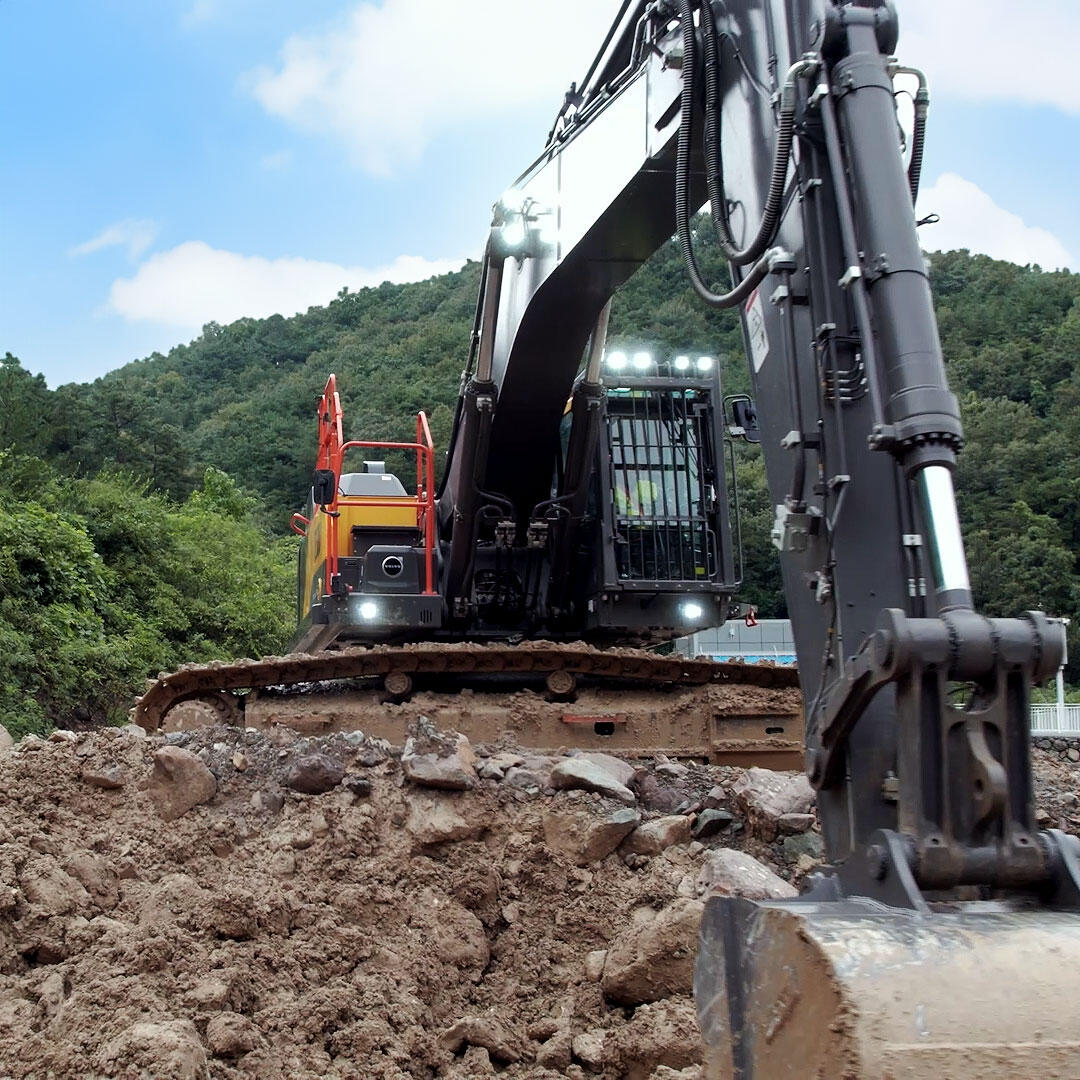

The Volvo EC500 crawler excavator is one of Volvo’s most popular machines, now made bigger and more capable to take on mining, quarrying, and heavy construction sites worldwide. With up to 15% greater fuel efficiency and a lower Total Cost of Ownership, the EC500 delivers the performance and reliability contractors expect, while driving down operating costs.
Equipped with powerful Volvo engine technology and an advanced electro-hydraulic system, the EC500 ensures strong digging power, fast cycle times, and precise control even under the toughest conditions. Its reinforced undercarriage and durable components make it a dependable partner for continuous heavy-duty work.

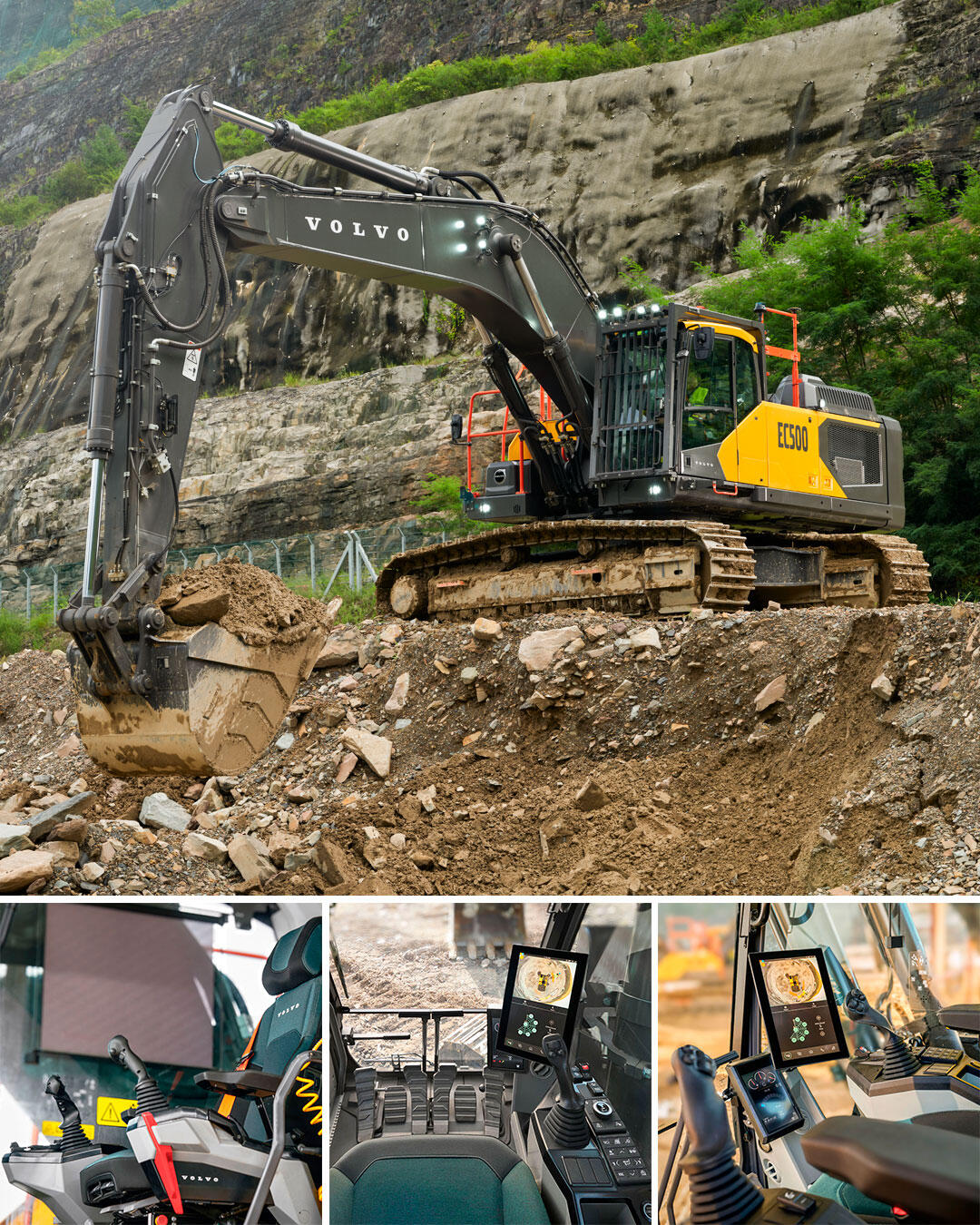

Designed around the operator, the new cab offers modern comfort, panoramic visibility, and intuitive controls that enhance productivity while reducing fatigue. Easier and faster serviceability through grouped maintenance points keeps downtime to a minimum. From owner to operator, the EC500 is the excavator that sets new benchmarks for efficiency, comfort, and long-lasting performance.
Technical specifications
Here are the key specifications for EC500. Want more details? Download the brochure or contact us.
- Operating weight 48 130 - 52 800 kg
- Gross power 312 kW
- Lifting capacity, along undercarriage 14 700 kg
- Lifting capacity, along undercarriage at reach / height 4.5 / 6 m
- Max digging reach 11 817 mm
- Max digging depth 7 478 mm
- Breakout force, SAE J1179 (Normal) 230 kN
- Breakout force, SAE J1179 (Boost) 251 kN
- Tear out force, SAE J1179 (Normal) 211 kN
- Tear out force, SAE J1179 (Boost) 230 kN
- Tail swing radius 3 880 m
- Bucket capacity 1.15 - 3.31 m³
Benefits & Features
Here are the key benefits and features of the EC500. Want to know more? Download the brochure or get in touch with us.
New Generation Electro-Hydraulics
Experience faster cycle times and superior control with the new generation electro-hydraulic system. It provides a more precise and responsive performance, enabling smooth combined movements for maximum productivity.
Powerful and Efficient D13 Engine
At its core is the proven Volvo D13 engine. It delivers high power and torque for the toughest applications, while its advanced design ensures outstanding fuel efficiency, lowering your overall operating costs per tonne.
Volvo Co-Pilot with Productivity Apps
Transform your machine into a smart production tool with the Volvo Co-Pilot. The large, user-friendly touchscreen gives you access to apps like Dig Assist and On-Board Weighing, boosting your accuracy and efficiency.
