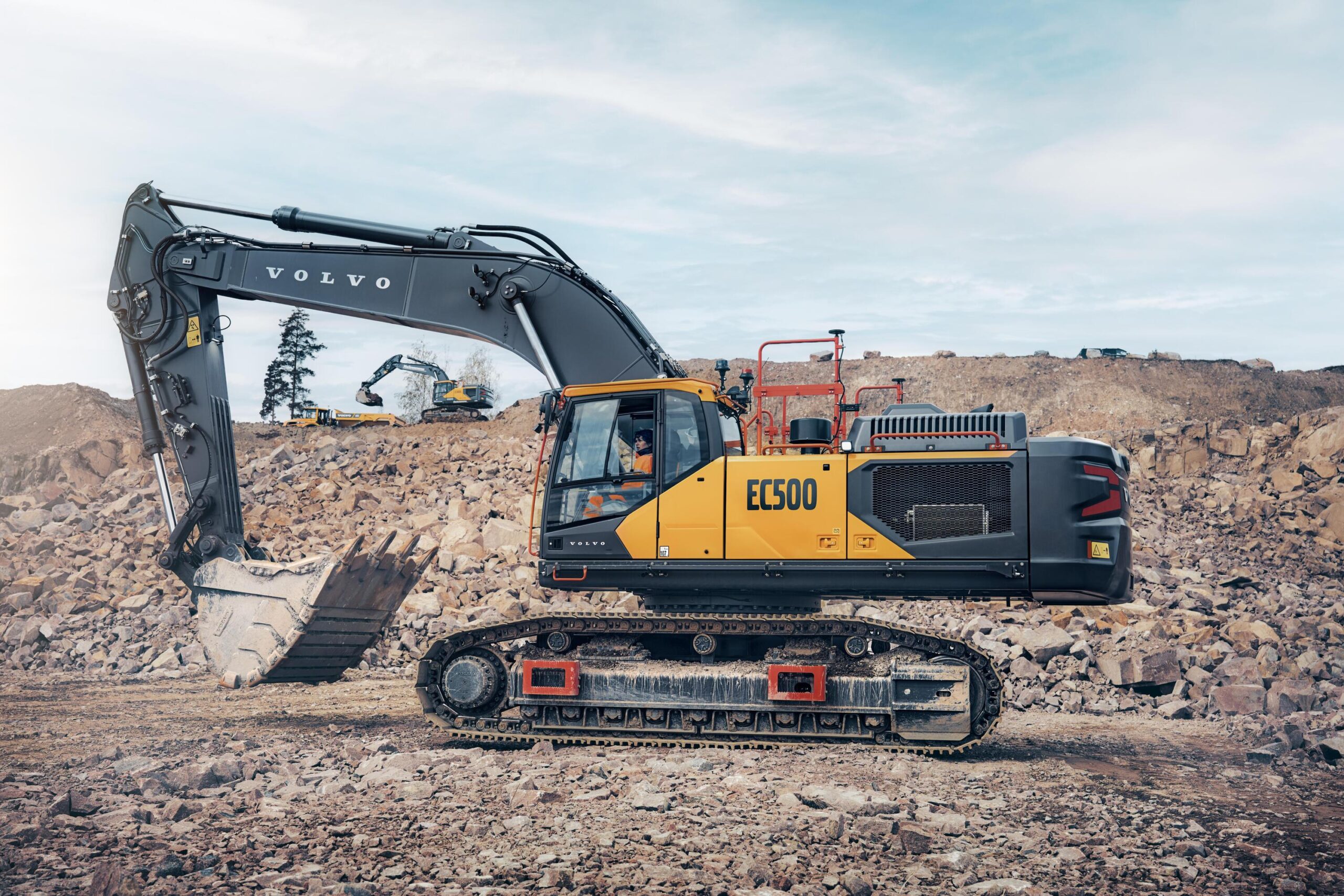

Volvo EC500 Hybrid
Large crawler excavators
- Extended warranty
- Flexible financing
- Tailored service contracts
The Volvo EC500 Hybrid is the straightforward solution for dig-and-dump applications, delivering a fast payback and long-term savings. With up to 17% greater fuel efficiency and a reduced Total Cost of Ownership, it helps contractors save fuel, cut emissions, and increase profitability on every job.
Powered by Volvo’s efficient hybrid system, the EC500 Hybrid captures and reuses boom-down energy, reducing engine load and maximizing efficiency without sacrificing performance. Its reinforced undercarriage and durable components ensure reliability in heavy-duty applications.
With a modern, comfortable cab designed around the operator and simplified serviceability through grouped maintenance points, the EC500 Hybrid meets the needs of both owners and operators alike. It is the perfect combination of performance, efficiency, and sustainability.
Technical specifications
Here are the key specifications for EC500 Hybrid. Want more details? Download the brochure or contact us.
- Operating weight 48 130 - 52 800 kg
- Gross power 312 kW
- Gross power at engine speed 1 300 rpm
- Lifting capacity, along undercarriage 14 700 kg
- Lifting capacity, along undercarriage at reach / height 4.5 / 6 m
- Max digging reach 11 817 mm
- Max digging depth 7 478 mm
- Breakout force, SAE J1179 (Normal) 230 kN
- Breakout force, SAE J1179 (Boost) 251 kN
- Tear out force, SAE J1179 (Normal) 211 kN
- Tear out force, SAE J1179 (Boost) 230 kN
- Tail swing radius 3 880 m
- Bucket capacity 1.15 - 3.31 m³
- Overall width 3 450 mm
Benefits & Features
Here are the key benefits and features of the EC500 Hybrid. Want to know more? Download the brochure or get in touch with us.
Advanced Hydraulic Hybrid Technology
Volvo’s innovative hybrid system captures free energy from the boom-down motion to charge a hydraulic accumulator. This stored energy is then used to power the hydraulic system, significantly cutting fuel consumption and CO2 emissions.
Uncompromised Production Power
Experience hybrid efficiency without sacrificing performance. The EC500 Hybrid delivers the same powerful digging forces and fast cycle times as its conventional counterpart, ensuring you meet your production targets on the toughest job sites.
Built for Sustainable Operations
Lower your environmental footprint and boost your brand image. By significantly reducing fuel consumption and emissions, the EC500 Hybrid is a smart investment that helps you meet environmental regulations and win more contracts.
