Volvo EC300 Straight Boom
Demolition equipment
- Extended warranty
- Flexible financing
- Tailored service contracts
The Volvo EC300 Straight Boom is the complete package for demolition performance, delivering superior safety and productivity. This machine combines the quality and comfort of a standard Volvo excavator with a purpose-built design for the demanding demolition segment.
Based on the versatile 30-ton class excavator, its straight boom provides a significant increase in reach. This offers operators a clearer view of the jobsite and the ability to work at a safe distance, while still providing outstanding stability and lifting capabilities.
Engineered with ultimate protection against falling debris and a focus on operator safety, the EC300 Straight Boom is built for durability. It is the best option for contractors seeking a cost-efficient, reliable, and highly capable machine for a wide range of demolition projects.
Technical specifications
Here are the key specifications for EC300 Straight Boom. Want more details? Download the brochure or contact us.
- Operating weight 31 766 - 33 304 kg
- Gross power 189 kW
- Gross power at engine speed 1 600 rpm
- Bucket capacity 0.52 - 2.06 m³
- Max digging reach 11 760 mm
- Max digging depth 6 150 mm
- Breakout force, SAE J1179 (Normal) 165 kN
- Breakout force, SAE J1179 (Boost) 179 kN
- Tear out force, SAE J1179 (Normal) 133 kN
- Tear out force, SAE J1179 (Boost) 144 kN
- Overall width 2 890 mm
- Tail swing radius 3 125 m
- Operating weight (NL) 31 634 - 33 172 kg
Benefits & Features
Here are the key benefits and features of the EC300 Straight Boom. Want to know more? Download the brochure or get in touch with us.

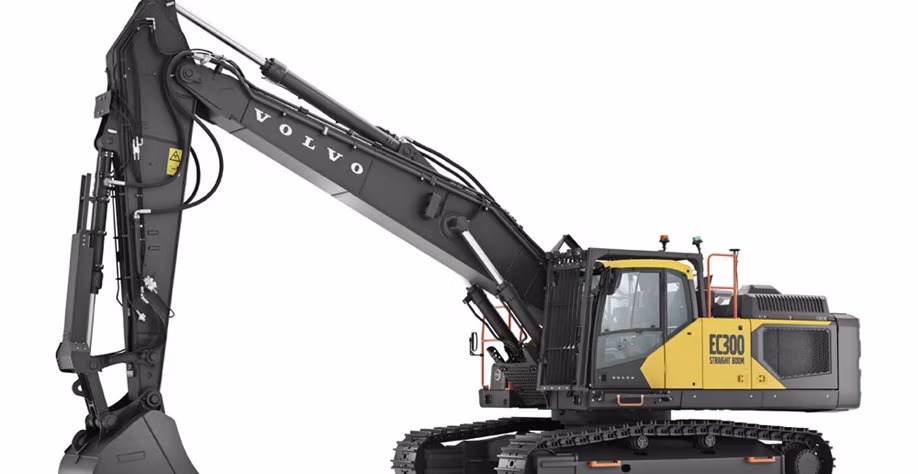

Extended Reach and Visibility
With up to 30% more pin height than a standard machine, the straight boom offers superior reach and a clearer view of the attachment and jobsite. This enhances both the safety and productivity of your demolition operations.
Ultimate Operator Protection
Work with confidence in the high-visibility cab, protected by a frame-mounted Falling Object Guard (FOG). This robust structure, combined with reinforced side protection, ensures the highest level of safety in demanding environments.

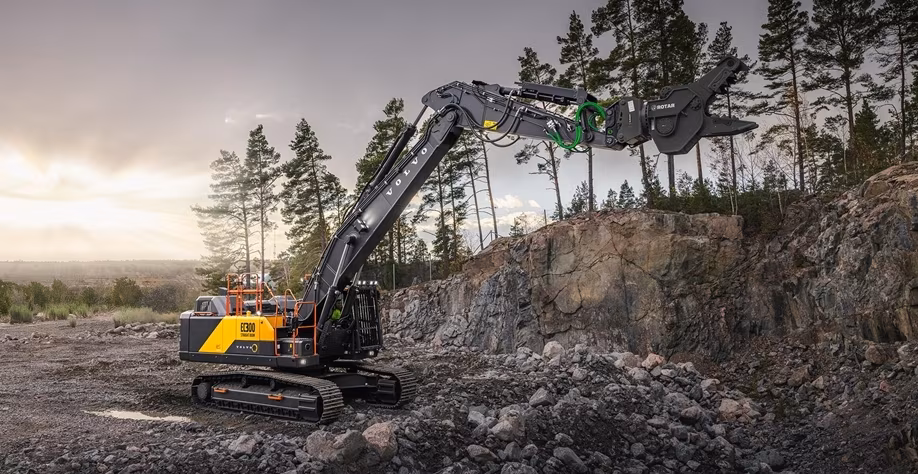

Outstanding Stability and Lifting
A heavier counterweight and robust undercarriage create a secure platform for demolition tasks. This outstanding stability allows for greater lifting capabilities and precise handling of heavy tools at maximum reach.
