Volvo EC230
Medium crawler excavators
- Extended warranty
- Flexible financing
- Tailored service contracts
The new generation Volvo EC230 is engineered to set new benchmarks for performance. This powerful and efficient crawler excavator is the perfect asset for demanding tasks in general construction and earthmoving, delivering superior productivity and a faster return on your investment.
At its core, an advanced Volvo D6 Stage V engine works with an intelligent electro-hydraulic system to maximize performance. As a benchmark for the new generation in the 23-ton class, it provides the ideal balance of stability and digging force while minimizing fuel consumption.
Designed for reliability, the EC230 features a robust frame and a reinforced undercarriage for maximum durability. Productivity is elevated in the new, operator-focused ROPS-certified Volvo Care Cab, which offers enhanced comfort and superior visibility, making this excavator a powerful and profitable partner for your business.
Technical specifications
Here are the key specifications for EC230. Want more details? Download the brochure or contact us.
- Operating weight 20 667 - 26 145 kg
- Gross power 129 kW
- Lifting capacity, along undercarriage 5 170 kg
- Lifting capacity, along undercarriage at reach / height 7.5 / 6 m
- Max digging reach 9 930 mm
- Max digging depth 6 730 mm
- Breakout force, SAE J1179 (Normal) 125 kN
- Breakout force, SAE J1179 (Boost) 132 kN
- Tear out force, SAE J1179 (Normal) 101 kN
- Tear out force, SAE J1179 (Boost) 107 kN
- Tail swing radius 2 870 m
- Bucket capacity 0.46 - 1.44 m³
Benefits & Features
Here are the key benefits and features of the EC230. Want to know more? Download the brochure or get in touch with us.
New Generation Performance
The intelligent electro-hydraulic system delivers faster response times and precision. Paired with a powerful Volvo engine, every movement is optimized for faster cycles, improved fuel efficiency, and superior operator control, boosting your overall job site productivity.
Enhanced Operator Station
The redesigned Volvo Care Cab sets the standard for comfort and safety. With more space, less vibration, and ergonomic controls, it creates a first-class environment. This keeps operators focused, comfortable, and highly productive throughout their entire shift.

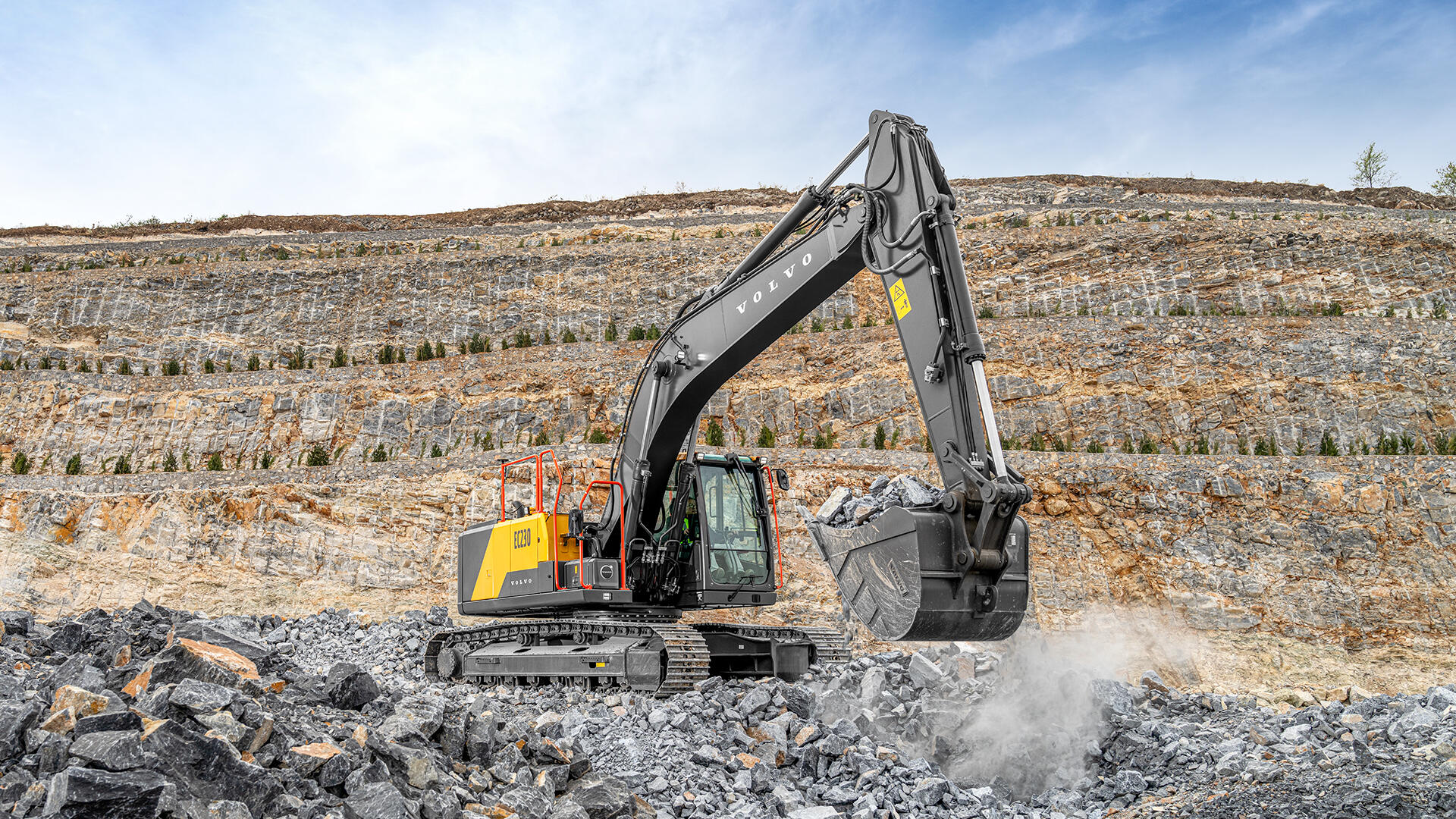

Built for Durability
Built to withstand the toughest conditions, the EC230 features a reinforced structure and a robust undercarriage. This focus on high-quality components translates directly into maximum machine uptime and a longer service life, ensuring you get the most out of your investment.
