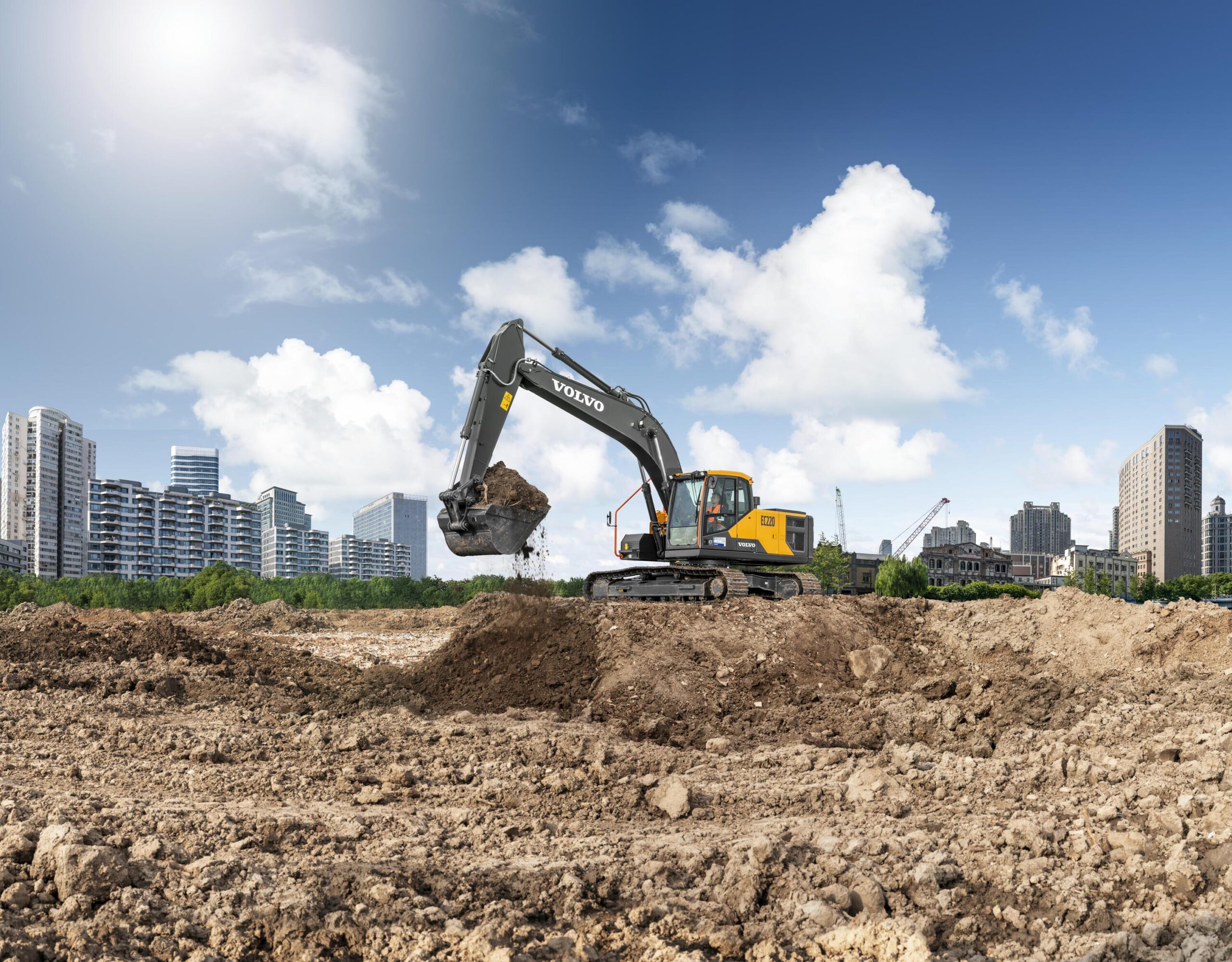

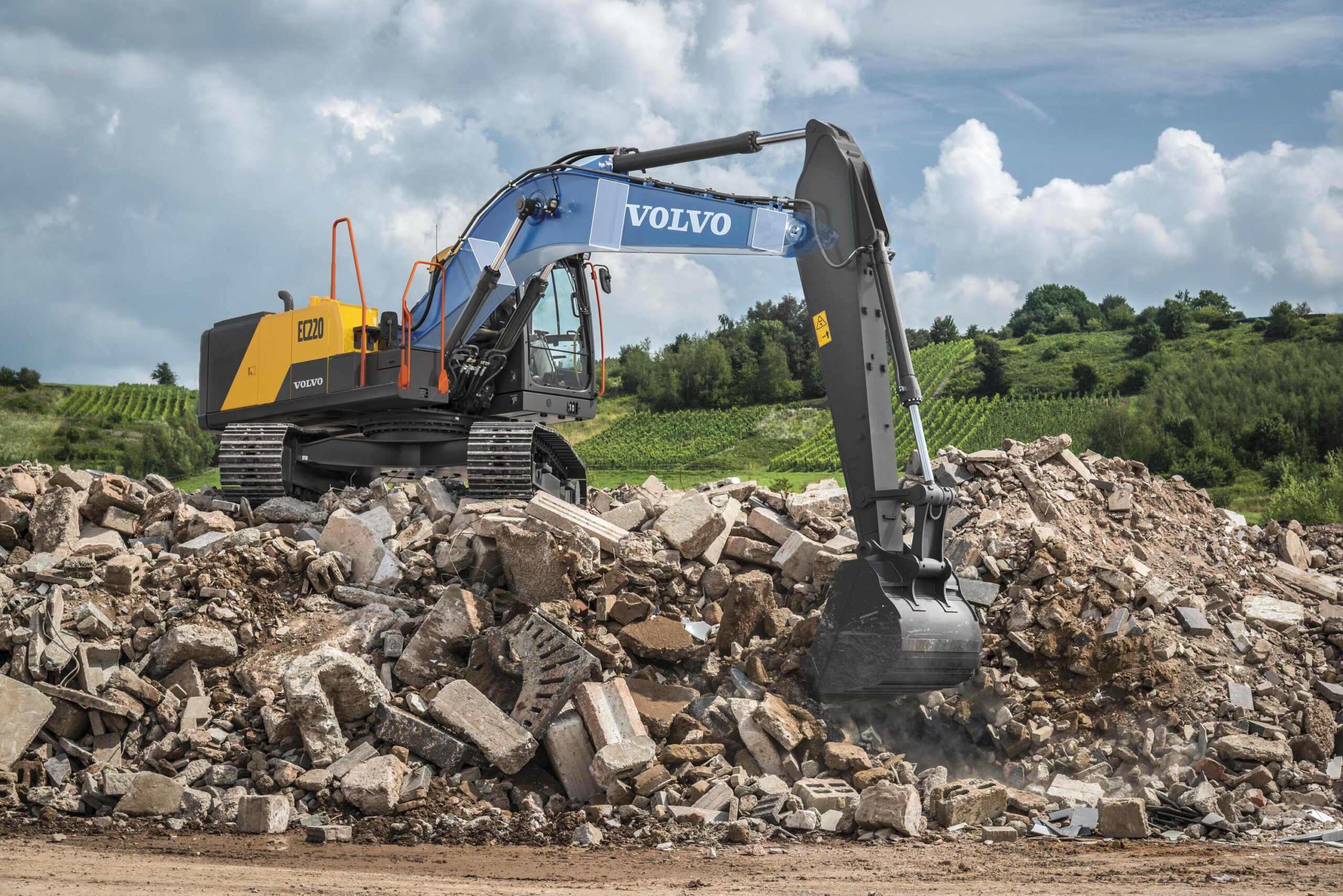

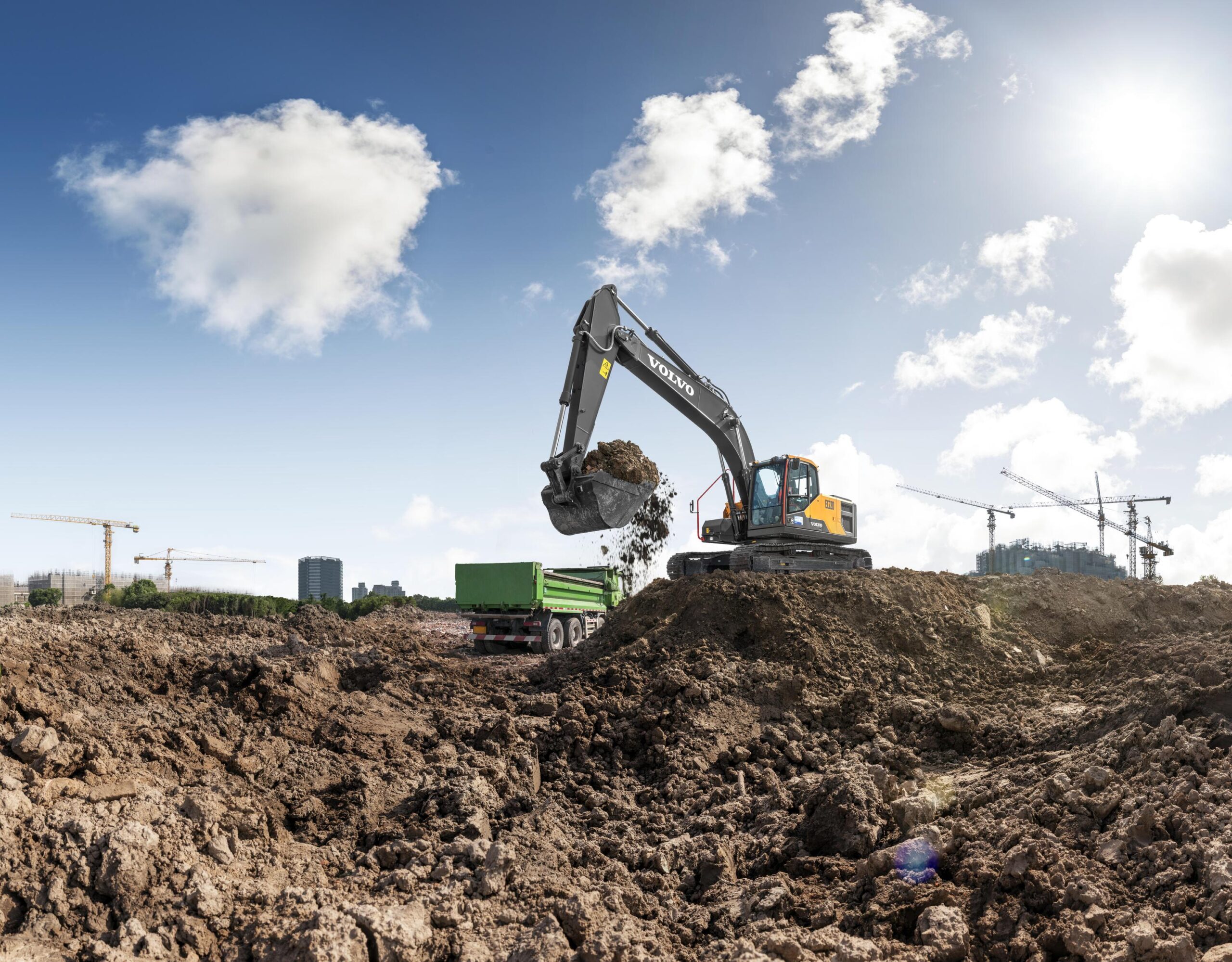

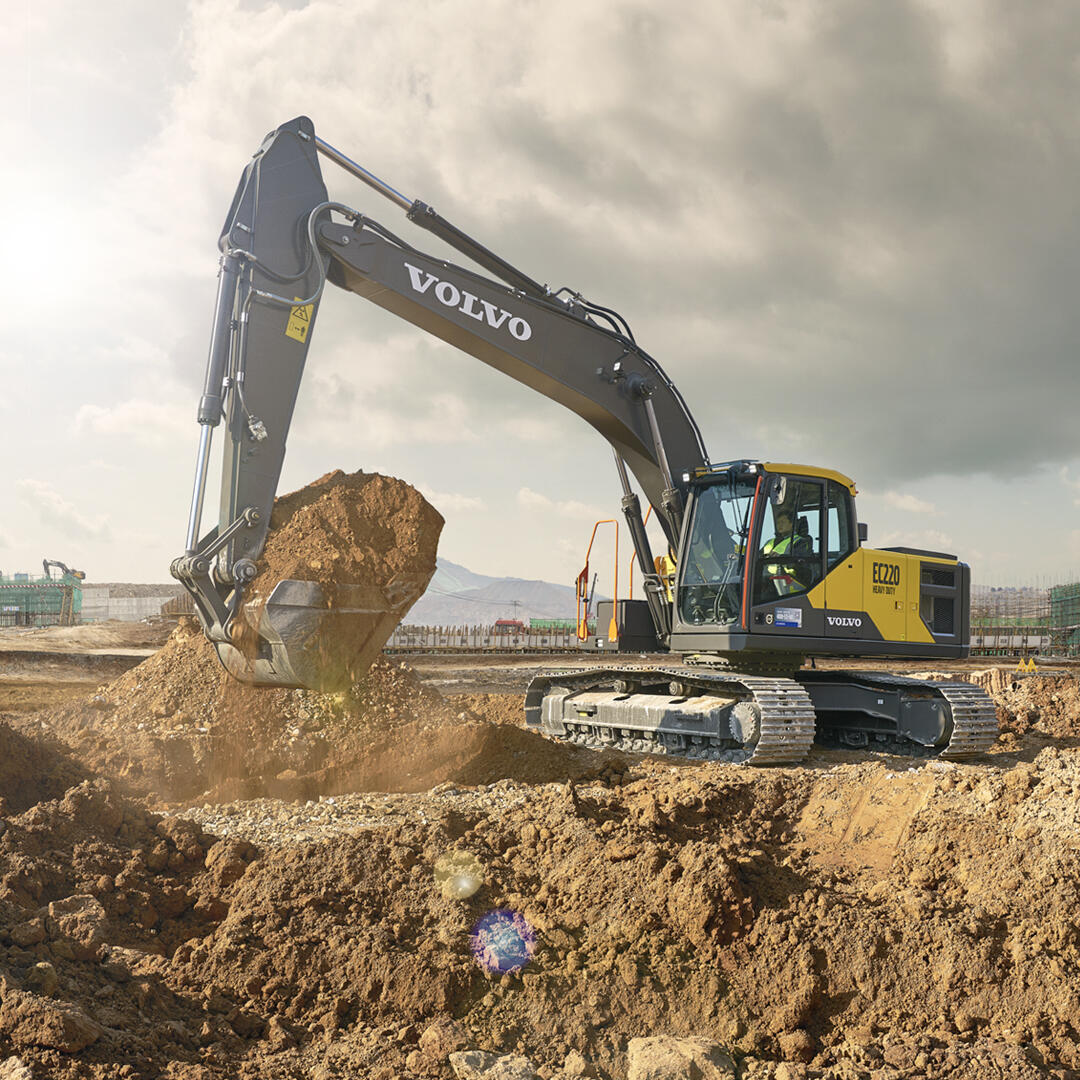

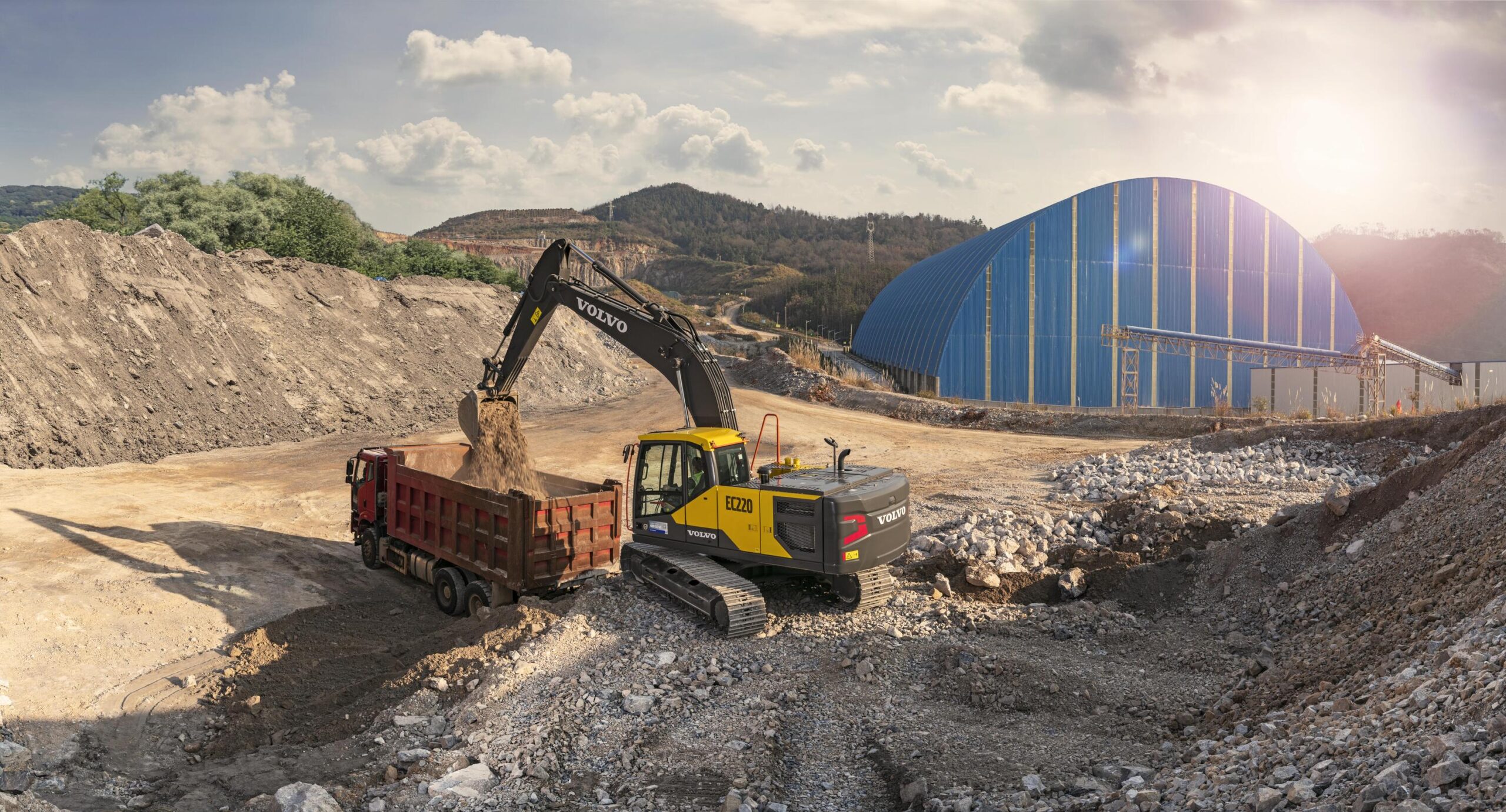

Volvo EC220E
Medium crawler excavators
- Extended warranty
- Flexible financing
- Tailored service contracts
The Volvo EC220E builds on a legacy of efficiency, engineered to deliver class-leading fuel economy without sacrificing power. This crawler excavator is a highly productive and reliable choice for a wide range of applications, including general construction and road building.
At its core, the powerful Volvo D6J Stage V engine and an advanced electro-hydraulic system work in perfect harmony to reduce fuel consumption. As a benchmark for efficiency in the 22-ton class, it provides an optimized balance of power and stability, lowering your operational costs.
Designed for maximum durability, the EC220E features a reinforced undercarriage and robust X-frame to withstand the toughest conditions. Operator performance is enhanced in the comfortable and safe ROPS-certified Volvo Care Cab, making this machine a profitable and dependable asset for any fleet.
Technical specifications
Here are the key specifications for EC220E. Want more details? Download the brochure or contact us.
- Operating weight 20 470 - 25 760 kg
- Gross power 129 kW
- Lifting capacity, along undercarriage 7 570 kg
- Lifting capacity, along undercarriage at reach / height 6 / 1.5 m
- Max digging reach 9 930 mm
- Max digging depth 6 730 mm
- Breakout force, SAE J1179 (Normal) 141 kN
- Breakout force, SAE J1179 (Boost) 149 kN
- Tear out force, SAE J1179 (Normal) 104 kN
- Tear out force, SAE J1179 (Boost) 110 kN
- Tail swing radius 2 850 m
- Bucket capacity 0.48 - 1.44 m³
- Overall width 2 990 mm
Benefits & Features
Here are the key benefits and features of the EC220E. Want to know more? Download the brochure or get in touch with us.
Class-Leading Fuel Efficiency
The EC220E ensures maximum fuel economy. Its powerful Volvo engine and intelligent hydraulics reduce consumption and emissions, leading to significantly lower running costs and higher profitability. Get more work done for less, enhancing your business’s bottom line.
Advanced Hydraulic Harmony
Volvo’s advanced electro-hydraulic system delivers excellent control and fast cycle times. All components work in perfect harmony, providing the precision needed for fine grading and the robust power required for heavy-duty digging, boosting overall job site efficiency.
Built for Operator Productivity
The ROPS-certified Volvo Care Cab provides a world-class operator environment. With low noise, all-around visibility, and ergonomic controls, it reduces fatigue and enhances safety. Operators stay comfortable, focused, and highly productive throughout the entire workday.
