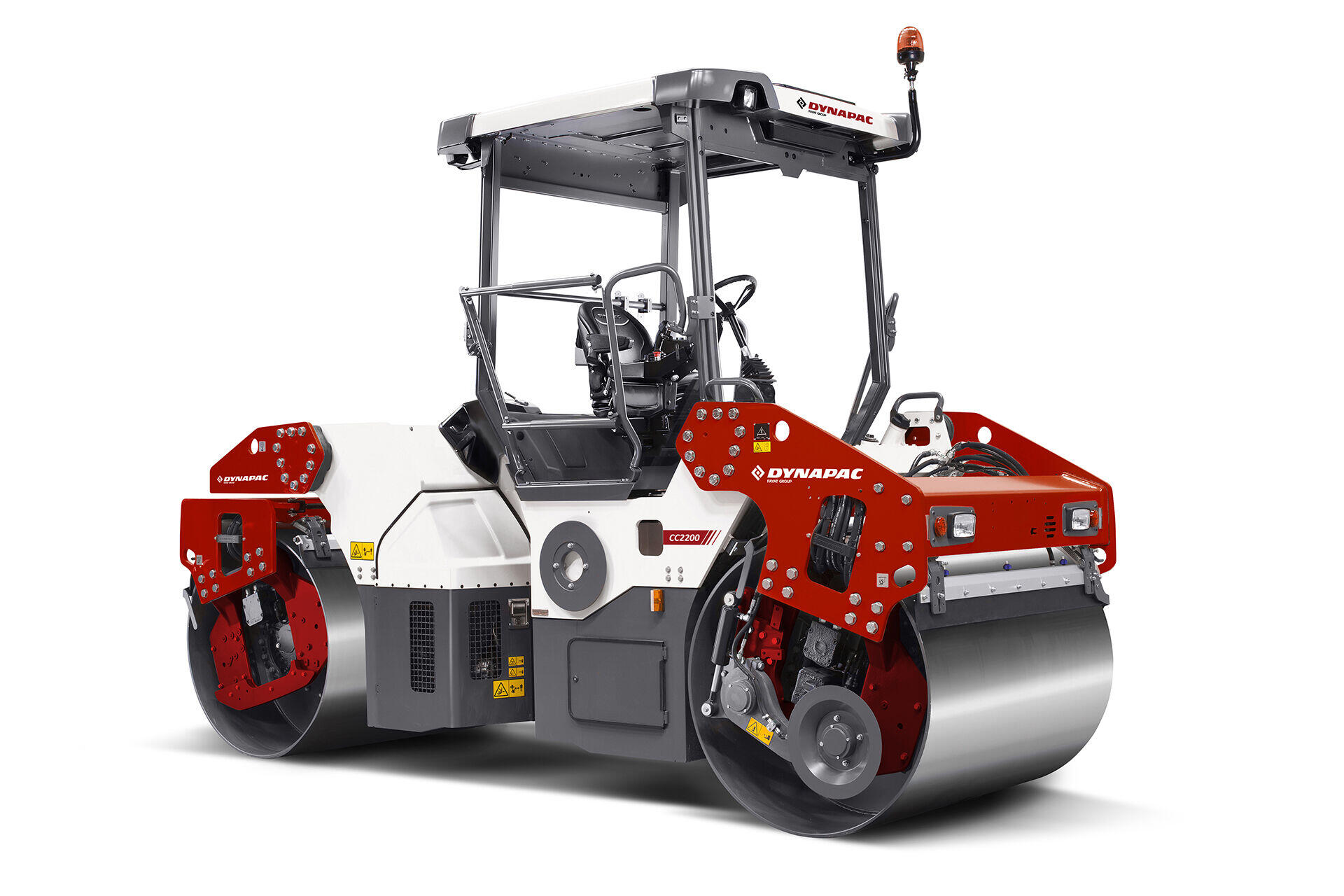

Dynapac CO2200 VI
Two Large Rolls
- Extended warranty
- Flexible financing
- Tailored service contracts
The Dynapac CO2200 VI is the ultimate versatile compactor, combining standard vibration with innovative oscillation technology. This 6th generation machine is the perfect choice for a wide range of applications, from thin layers and sensitive areas to standard paving jobs.
The oscillation drum provides a gentle, shearing compaction force that prevents aggregate crushing, while the standard vibration drum ensures high productivity on thicker layers. With an advanced VI control system, the CO2200 VI is a smart, flexible asset for any fleet.
Technical specifications
Here are the key specifications for CO2200 VI. Want more details? Download the brochure or contact us.
- Max. operating mass 9 000 kg
- Operating mass (incl. ROPS) 7 800 kg
- Operating mass (incl. Cab) 7 950 kg
- Speed range 0 12 km/h
- Max. theoretical gradeability 42 %
- Manufacturer / Model Deutz TCD 3.6 HT T4f
- Type Water cooled turbo Diesel
- Rated power, SAE J1995 55 kW (74 hp) @ 2200 rpm
- Fuel tank capacity 130 l
- Driving Axial piston pump with variable displacem. Rad. piston motors(2) with variable displacem.
- Vibration Axial piston pumps(2) with variable displacem. Axial piston motors(2) with const. displacem.
- Steering Gear pump with constant displacem.
- Service brake Hydrostatic in forward and reverse lever.
- Parking Failsafe multidisc brake in both drums.
- Compaction width 1 500 mm
- Oscillation frequency 40 Hz
Benefits & Features
Here are the key benefits and features of the CO2200 VI. Want to know more? Download the brochure or get in touch with us.
Oscillation for Sensitive Applications
The oscillation drum provides gentle, effective compaction without vibration. This is ideal for sensitive areas like bridges, joints, or urban zones, preventing damage and delivering a high-quality surface.
Vibration for High Productivity
Switch to the standard vibration drum for high-performance compaction on thicker layers and demanding mixes. This dual capability makes the CO2200 VI a highly versatile and profitable “two-in-one” machine.
